Spinwheel using .NET Core and Winsheel.js

-

 Hi All,

Recently I had request from one of my friends to create a small application to distribute 1000 gifts among employees of a certain company.

1) There were 5 types of gifts

2) Each type had 200 gifts

3) Gifts must be given in a random way

4) Every employee must get a gift

5) They should not get a gift which is over

So created a small application with a .NET Core backend, html, javascript. I used Winwheel.js to create the spinwheel. Hope you like it.

1) Solution










2) SQL Tables









3) HomeController.cs

using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;
using Microsoft.Extensions.Configuration;
using Microsoft.Extensions.Logging;
using SpinWheelAppCore.Models;

namespace SpinWheelAppCore.Controllers
{
    public class HomeController : Controller
    {
        private readonly ILogger<HomeController> _logger;
        private readonly IConfiguration _configuration;
        private readonly PrizeContext _entities;

        public int MaxPrizeCount
        {
            get
            {
                return int.Parse(_configuration["MaxPrizeCount"]);
            }
        }
        public int MaxPrizeTotalCount
        {
            get
            {
                return int.Parse(_configuration["MaxPrizeTotalCount"]);

            }
        }
        public int PrizeCategoryCount
        {
            get
            {
                return int.Parse(_configuration["PrizeCategoryCount"]);

            }
        }

        public HomeController(ILogger<HomeController> logger,
            IConfiguration configuration,
            PrizeContext entities)
        {
            _logger = logger;
            _configuration = configuration;
            _entities = entities;
        }

        public IActionResult Index()
        {
            return View(new HomeViewModel() { MaxPrizeTotalCount = MaxPrizeTotalCount,PrizeCategoryCount=PrizeCategoryCount });
        }

        public IActionResult Reset()
        {
            return View();
        }

        [HttpPost]
        public IActionResult Reset(string submitButton)
        {
            if (!string.IsNullOrEmpty(submitButton) && submitButton == "Yes")
            {
                _entities.Prize.RemoveRange(_entities.Prize);
                _entities.SaveChanges();
            }







            return RedirectToAction("Index");
        }



        public ReturnDataMsg GetResults()
        {
            ReturnDataMsg returnDataMsg = new ReturnDataMsg();

            try
            {
                int count = _entities.Prize.Count();


                var prizeList = (from pc in _entities.PrizeCategory
                                 select new PrizeCount() { PrizeName = pc.Name, Count = MaxPrizeCount }).ToList();

                var prizeWonList = (from p in _entities.Prize
                                    orderby p.Prize1
                                    group p by p.Prize1 into grp
                                    select new PrizeCount() { PrizeName = grp.Key, Count = MaxPrizeCount - grp.Count() }).ToList();

                returnDataMsg.TotalZeroCount = prizeWonList.Where(p => p.Count == 0).Count();

                PrizeCount objFound = null;
                foreach (var prize in prizeList)
                {
                    objFound = prizeWonList.Where(p => p.PrizeName == prize.PrizeName).SingleOrDefault();
                    if (objFound != null)
                    {
                        prize.Count = objFound.Count;
                    }
                    objFound = null;
                }

                returnDataMsg.PrizeCounts = prizeList;
                returnDataMsg.TotalCount = count;
            }
            catch (Exception ex)
            {


            }

            return returnDataMsg;

        }

        [HttpPost]
        public ReturnDataMsg PostPrize(string id)
        {
            ReturnDataMsg returnDataMsg = new ReturnDataMsg();

            try
            {
                if (!string.IsNullOrEmpty(id))
                {
                    int count = _entities.Prize.Count();

                    List<PrizeCount> prizeWonList = (from p in _entities.Prize
                                                     orderby p.Prize1
                                                     group p by p.Prize1 into grp
                                                     select new PrizeCount() { PrizeName = grp.Key, Count = MaxPrizeCount - grp.Count() }).ToList();


                    //bool havePrize = prizeWonList.Where(l => l.PrizeName == value && l.Count > 0).SingleOrDefault() != null;

                    if (count < MaxPrizeTotalCount)
                    {

                        _entities.Prize.Add(new Prize() { Prize1 = id, CreatedOn = DateTime.Now });
                        _entities.SaveChanges();
                        count++;
                    }

                    prizeWonList = (from p in _entities.Prize
                                    orderby p.Prize1
                                    group p by p.Prize1 into grp
                                    select new PrizeCount() { PrizeName = grp.Key, Count = MaxPrizeCount - grp.Count() }).ToList();

                    var prizeList = (from pc in _entities.PrizeCategory
                                     select new PrizeCount() { PrizeName = pc.Name, Count = MaxPrizeCount }).ToList();


                    returnDataMsg.TotalZeroCount = prizeWonList.Where(p => p.Count == 0).Count();

                    PrizeCount objFound = null;
                    foreach (var prize in prizeList)
                    {
                        objFound = prizeWonList.Where(p => p.PrizeName == prize.PrizeName).SingleOrDefault();
                        if (objFound != null)
                        {
                            prize.Count = objFound.Count;
                        }
                        objFound = null;
                    }

                    returnDataMsg.PrizeCounts = prizeList;
                    returnDataMsg.TotalCount = count;

                }

            }
            catch (Exception ex)
            {

            }

            return returnDataMsg;
        }
    }
}

4) Models.cs

using System;
using System.Collections.Generic;

namespace SpinWheelAppCore.Models
{
    public class ErrorViewModel
    {
        public string RequestId { get; set; }

        public bool ShowRequestId => !string.IsNullOrEmpty(RequestId);
    }

    public class HomeViewModel {
        public int MaxPrizeTotalCount
        {
            get;set;
        }

        public int PrizeCategoryCount
        {
            get; set;
        }

    }

    public class PrizeCount
    {
        public string PrizeName { get; set; }
        public int Count { get; set; }

    }

    public class ReturnDataMsg
    {
        public List<PrizeCount> PrizeCounts { get; set; }
        public int TotalCount { get; set; }
        public int TotalZeroCount { get; set; }
    }
}

5) Index View (Index.cshtml)

@model HomeViewModel


@{

    ViewData["Title"] = "Click on the Wheel to Play & Win";

}


< <div id="completeModal" class="modal" tabindex="-1" role="dialog">

    <div class="modal-dialog" role="document">

        <div class="modal-content">

            <div class="modal-header">

                <h5 class="modal-title">Competition Finished</h5>


            </div>

            <div class="modal-body">

                <p>Congratulations to all Prize Winners. Have a nice day!</p>

            </div>

            <div class="modal-footer">


            </div>

        </div>

    </div>

</div>


<div class="row">


    <div class="col-md-8">

        <table cellpadding="0" cellspacing="0" align="center" valign="center" border="0">

            <tr>

                <td height="580" class="the_wheel">

                    <canvas onclick="startSpin();" id="canvas" width="434" height="434">

                        <p style="{color: white}" align="center">Sorry, your browser doesn't support canvas. Please try another.</p>

                    </canvas>

                </td>

            </tr>


        </table>


    </div>

    <div class="col-md-4">

        <div class="container">

            <div class="card-deck mb-3 text-center">

                <div class="card mb-4 box-shadow">

                    <div class="card-header">

                        <h4 class="my-0 font-weight-normal">Results</h4>

                    </div>

                    <div id="resultBody1" class="card-body">





                    </div>



                    <div id="resultFooter" style="display:none" class="card-footer">

                        <a asp-action="Reset" class="btn btn-lg btn-block btn-primary">Reset</a>

                    </div>

                </div>


            </div>



        </div>




    </div>

</div>



<script type="text/javascript">






    // Create new wheel object specifying the parameters at creation time.

    let theWheel = new Winwheel({

        'numSegments': 5,     // Specify number of segments.

        'outerRadius': 212,   // Set outer radius so wheel fits inside the background.

        'textFontSize': 28,    // Set font size as desired.

        //'segments'     :        // Define segments including colour and text.

        //[

        //   {'fillStyle' : '#888888', 'text' : 'Prize 1'},

        //   {'fillStyle' : '#89f26e', 'text' : 'Prize 2'},

        //   {'fillStyle' : '#7de6ef', 'text' : 'Prize 3'},

        //   {'fillStyle' : '#e7706f', 'text' : 'Prize 4'},

        //   {'fillStyle' : '#eae56f', 'text' : 'Prize 5'}


        //],

        'animation':           // Specify the animation to use.

        {

            'type': 'spinToStop',

            'duration': 5,     // Duration in seconds.

            'spins': 12,     // Number of complete spins.

            'callbackFinished': alertPrize

        }

    });


    // Vars used by the code in this page to do power controls.

    let wheelPower = 0;

    let wheelSpinning = false;


    // -------------------------------------------------------

    // Function to handle the onClick on the power buttons.

    // -------------------------------------------------------

    function powerSelected(powerLevel) {

        // Ensure that power can't be changed while wheel is spinning.

        if (wheelSpinning == false) {

            // Reset all to grey incase this is not the first time the user has selected the power.



            // Now light up all cells below-and-including the one selected by changing the class.



            // Set wheelPower var used when spin button is clicked.

            wheelPower = powerLevel;



        }

    }


    // -------------------------------------------------------

    // Click handler for spin button.

    // -------------------------------------------------------

    function startSpin() {

        // Ensure that spinning can't be clicked again while already running.

        if (wheelSpinning == false) {

            // Based on the power level selected adjust the number of spins for the wheel, the more times is has

            // to rotate with the duration of the animation the quicker the wheel spins.

            if (wheelPower == 1) {

                theWheel.animation.spins = 3;

            } else if (wheelPower == 2) {

                theWheel.animation.spins = 8;

            } else if (wheelPower == 3) {

                theWheel.animation.spins = 15;

            }


            // Disable the spin button so can't click again while wheel is spinning.

            //document.getElementById('spin_button').src       = "spin_off.png";

            //document.getElementById('spin_button').className = "";


            // Begin the spin animation by calling startAnimation on the wheel object.

            theWheel.startAnimation();


            // Set to true so that power can't be changed and spin button re-enabled during

            // the current animation. The user will have to reset before spinning again.

            wheelSpinning = true;

        }

    }


    // -------------------------------------------------------

    // Function for reset button.

    // -------------------------------------------------------

    function resetWheel() {

        theWheel.stopAnimation(false);  // Stop the animation, false as param so does not call callback function.

        theWheel.rotationAngle = 0;     // Re-set the wheel angle to 0 degrees.

        theWheel.draw();                // Call draw to render changes to the wheel.




        wheelSpinning = false;          // Reset to false to power buttons and spin can be clicked again.

    }


    // -------------------------------------------------------

    // Called when the spin animation has finished by the callback feature of the wheel because I specified callback in the parameters

    // note the indicated segment is passed in as a parmeter as 99% of the time you will want to know this to inform the user of their prize.

    // -------------------------------------------------------

    function alertPrize(indicatedSegment) {


        // Do basic alert of the segment text. You would probably want to do something more interesting with this information.

        bootbox.alert("Congratulations!!!  You have won " + indicatedSegment.text, function () {


            postResult(indicatedSegment.text);

        });



    }



    function getResult() {

        $.get("../Home/GetResults", function (data) {



            if (data) {



                initWheel(data);



            }

        });

    }


    function drawInitialWheel() {


        var segments = [

            { 'fillStyle': '#888888', 'text': 'Prize 1' },

            { 'fillStyle': '#89f26e', 'text': 'Prize 2' },

            { 'fillStyle': '#7de6ef', 'text': 'Prize 3' },

            { 'fillStyle': '#e7706f', 'text': 'Prize 4' },

            { 'fillStyle': '#eae56f', 'text': 'Prize 5' }


        ];


        for (var l = 0; l < theWheel.segments.length; l++) {

            theWheel.deleteSegment(l);


        }



        for (var i = 0; i < segments.length; i++) {

            theWheel.addSegment({ 'fillStyle': segments[i]["fillStyle"], 'text': segments[i]["text"] });

        }

    }


    function initWheel(data) {


        $("#resultBody1").empty();

        $("#resultBody1").append("<h1 class='totalCard card-title pricing-card-title'> " + data.totalCount + "/@Model.MaxPrizeTotalCount" + " <small class='text-muted'>Prizes Won</small> </h1>");


        if (data.totalCount > 0) {

            $("#resultFooter").attr("style", "display:normal");


        }


        if (data.prizeCounts) {








            let tempSegments = theWheel.segments.map((x) => x);



            for (var l = 1; l < theWheel.segments.length; l++) {

                theWheel.deleteSegment(l);


            }


            //theWheel.deleteAllSegments();


            //theWheel.deleteSegment();


            //console.log(theWheel.numSegments);



            var segIndex = 1;

            var addedSegments = false;


            for (var i = 0; i < data.prizeCounts.length; i++) {

                $("#resultBody1").append("<h3 class='resultCard card-title pricing-card-title'>" + data.prizeCounts[i].count + " <small class='text-muted'>" + data.prizeCounts[i].prizeName + " Remaining </small> </h3>");




                let segment = null;

                let dataPrize = null;

                for (var l = 0; l < tempSegments.length; l++) {

                    if (tempSegments[l] && tempSegments[l].text === data.prizeCounts[i].prizeName && data.prizeCounts[i].count > 0) {

                        segment = tempSegments[l];

                        dataPrize = data.prizeCounts[i];

                        break;

                    }


                }





                if (segment) {


                    if (i === 0) {

                        segment.startAngle = 0;

                        segment.endAngle = 360 / (5 - data.TotalZeroCount);

                        theWheel.addSegment(segment, segIndex++);


                        addedSegments = true;

                    }

                    else {


                        let exSegment = null;


                        for (var l = 0; l < theWheel.segments.length; l++) {

                            if (theWheel.segments[l] && theWheel.segments[l].text === segment.text) {

                                exSegment = theWheel.segments[l];

                                break;

                            }


                        }



                        if (exSegment === null && data.TotalZeroCount != @Model.PrizeCategoryCount -1) {


                            theWheel.addSegment({ 'fillStyle': segment.fillStyle, 'text': segment.text }, segIndex++);


                            addedSegments = true;

                        }


                                              else {

                            segment.startAngle = 0;

                            segment.endAngle = 360 / (@Model.PrizeCategoryCount - data.totalZeroCount);


                            theWheel.addSegment(segment, segIndex++);

                        }






                                     }



                }


            }




            if (addedSegments || (data.totalZeroCount === @Model.PrizeCategoryCount  -1))

            theWheel.deleteSegment(segIndex);


            theWheel.draw();


        }


        if (data.totalCount === @Model.MaxPrizeTotalCount) {

            $("#completeModal").modal({

                backdrop: 'static',

                keyboard: false

            });


        }

    }


    function postResult(value) {






        $.post("../Home/PostPrize/" + value, function (data) {


            if (data) {



                initWheel(data);

            }



        });



        resetWheel();

    }

    drawInitialWheel();

    powerSelected(3);

    getResult();

</script>

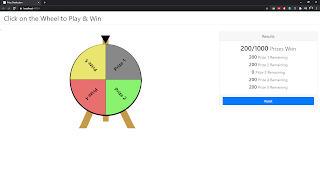

6) In Action







Comments

Post a Comment

Popular posts from this blog

Secure .NET Core Api Server and Client

-
 Hi Guys, Recently I had a requirement to create a JWT token based WebApi server and a WebApi Client to consume it using .NET Core. So first I created two .NET Core Web Api projects as shown below. In the appsettings.json file of both the WebApi Server and the Client. I added the following values. "JwtConfig": { "Key": "dsadsagfaqrergsdsfdffdsfdsffdsfdsfdsfdsfdfdsfsfdsfd", //Some Secure Key longer the better "AudienceId": 7895, //Some Secure Audience Id "HostUrl": "https://somesecureurl.com" //Some Host Url } Now we will first look at implementation of the WebApi Server. 1) First we must create code to Generate the JWT token, this can be achieved by creating JWTTokenManager.cs file and adding following code public interface IJwtTokenManager { string Authenticate(string userName, string password); } public class JwtTokenManager : IJwtTokenManager { private readonly IConfiguration _c...
Read more

Calling ChatGPT using .NET Core

-
  Hi Guys, With the immense hype created by ChatGPT every technology is adopting ways to integrate ChatGPT to their frameworks. Hence, a brilliant team led by Hassan Habib  has managed to give .NET Developers a way to call ChatGPT programmatically and get the responses. Remember this is still a new project you might encounter some issues, but the Standard.AI.OpenAI team is ready to help us developers in this journey. The source code can be found here. 1) First you must register yourself at https://platform.openai.com 2) Then you must generate an API Key as shown below. 3) Now you can start integrating your .NET Core applications to use openai. For this purpose I use a console application (.NET 7).  4) Install the Nuget package Standard.AI.OpenAI 5) Copy paste the below code using Microsoft.AspNetCore.Mvc; using Standard.AI.OpenAI.Brokers.DateTimes; using Standard.AI.OpenAI.Clients.OpenAIs; using Standard.AI.OpenAI.Models.Configurations; using Standard.AI.OpenAI.Model...
Read more

Windows Desktop Watermark with username

-
 Hi Guys, I recently had a requirement from a client to implement a way to protect sensitive documents from being photographed from mobile devices and shared online. To mitigate this issue I made a windows application using C#.  When the exe runs it will read current logged in users' domain user account and display his username throughout the screen. I have given options to change the displayed text to username, hostname of the computer or any custom texts. You can get this application from the following url  Desktop watermark Note: This is works only in Windows Operating Systems
Read more
